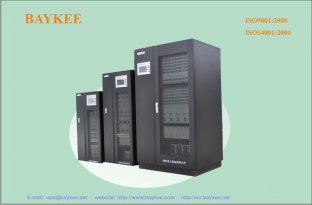

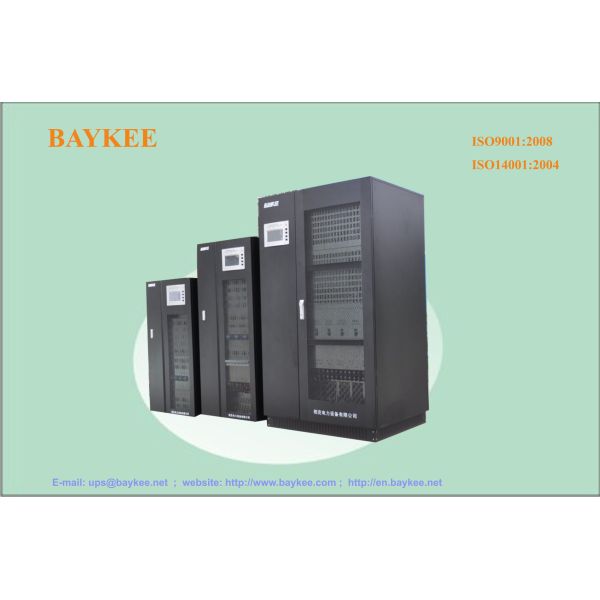

ups power CHP10k~60k:
1. UPS controlled by Digital Signal Processor
2. Sine wave Pulse Width Modulation (SPWM)UPS power CHP10K~60K;
1. 3 Phase in 3 Phase out;
2. High Resolution graphs LCD Display, UPS status display on LED
flowchart;
3. Automatical Battery Management and charging system;
4. Wide input Voltage range;
5. Smart RS-232 or RS-485 communication port;
6. Double conversion on-line system;
7. Expandable battery run time;
8. Generator compatible;
9. IGBT inverter design;
10. Cold start function;
11. Accepted 100% unbalanced load;
12. Multi-function LCD display;
13. Remote control panel
14.Extended back up time with battery pack;
15.History record of power failure events;
16.Optional Extension battery pack;
17.short circuit and overload protection;
18. Fully digitized microprocessor controlled;
19. Manual bypass setting;
20. Optional EPS, UPS, ECO mode setting;
Model | CHP3010K | CHP3015K | CHP3020K | CHP3030K | CHP3040K | CHP3060K |
Nominal capacity KVA | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA |
Work principle | Pure sine wave on line |
Phase | 3phase+N+G |
Input power factor | >0.9 or >0.95(option) |
Rectifier | Nominal input voltage | 220/380VAC ; 230/400VAC ; 240/415VAC |
Range | +/-25% |
Nominal input frequency | 50Hz / 60Hz+/-10% |
Output ripple | Less than 2% |
Soft start | 0-100% 5sec |
Charger | Charge mode | constant current to constant voltage, with temp compensation; with
Auto change |
Float Voltage | 432VDC |
Boost Voltage | 445VDC |
Temperature compensation voltage | 3mV/ 1 pcs |
Charge current | 0.1C( automatically change follow the batteries ) |
Charge frequency | 20% of Rated capacity |
Battery | Battery Type | maintenance-free lead acid battery |
Battery capacity | 7--999AH settable (according to the capacity) |
Battery number | 32pcs 12V or 192pcs 2V(Nominal voltage 384VDC) |
Inverter | Phase | Three phase+N |
Capacity | Rated capacity *0.8 |
Nominal voltage | 220/380VAC ; 230/400VAC ; 240/415VAC |
Output voltage stability | +/-1%( Stable load); +/-3%( fluctuant load) |
Output frequency stability | 50Hz/60Hz＜+/-0. 5% |
Creast factor | > 3:1 |
Output waveform distortion | Sine wave , linear load<3%;non-linear load<5% |
Dynamic characteristics | Instant voltage<+/-5%(from 0 to100% ), Instant recover time<10mS |
Unbalanced load voltage | ＜+/-5% |
Overload Protection | 125%10 S；150%1S；200％10 ms |
efficiency | >95％(full load) |
Bypass | Phase | Three phase +N+G |
Nominal voltage | 220/380VAC; 230/400VAC; 240/415VAC |
Transfer time | <1mS( static switch with 0 transfer time ) |
Protection | Input protection | Input voltage/frequency over limited ;wrong phase; lack phase |
Output protection | Over current short circuit ; factor low protection |
Battery protection | Over charge ; over-discharge protection |
Temperature protection | Ambient over temperature protection; inverter over temperature protection |
Hardware failure protection | Assistant power abnormal, breaker cut off , breaker overload, power
components over current/over voltage etc protection |
System Parameters | Working environment | Temp: 0～40, relative humidity 30%～90 %;( a 1% decrease against 100
meters’ rise. Altitude 4000m MAX) |
cooling -down method | COMPULSIVE VENTILATION(with temperature control) |
Communication Interface | RS232, RS485; optional SNMP card (for internet long distance
monitor ) |
Redundancy function | In series or N+1 parallel |
Anti-surge capacity | 10/700μS, 5KV ；8/20μS, 20KA |
Protection level | IP31 or IP21 |
Safety Performance | Vin-n Vout-n 3000Vac, creepage<3.5mA isolation resistance
>3M(500VDC) |
Noise dB | 45-55 | 55-60 |
Dimension(W*D*H)mm | 430*750*1080 | 480*895*1200 |
Weight(Kg) | 260 | 350 | 400 | 480 | 580 | 850 |
